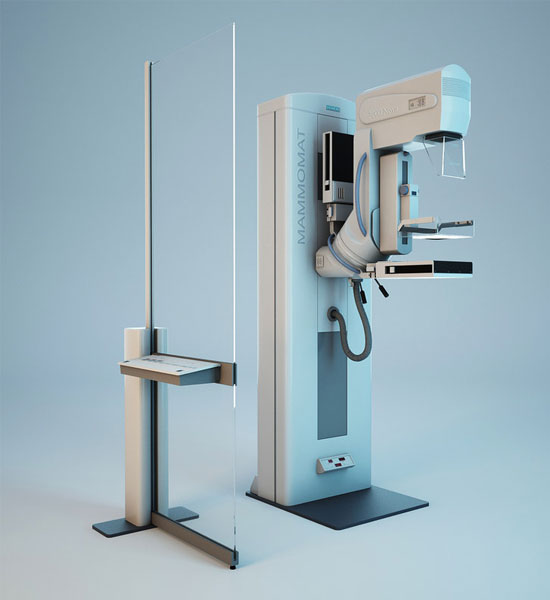

Mammomat 3000 Nova

Mamomat 3000 Nova

X-RAY TUBE
Target/filter combinations (X-RAY TUBE) Mo/Mo, Mo/Rh, W/Rh
Heat capacity, hu (X-RAY TUBE) 162,000 anode, 1,500,000 housing
Anode type (X-RAY TUBE) Rotating 8,800 rpm
Focal spot size, mm (X-RAY TUBE) 0.1 and 0.3
Heat dissipation rate, hu/min (X-RAY TUBE) 40,500 anode
Optional Attachments
(SHOCK-WAVE GENERATOR)
Opdima spot digital imaging system; compatible with Mammotome vacuum stereotactic biopsy device
GENERATOR High-frequency, single- or two-phase power supply
Ma range (IMAGING SYSTEM) 34-188 W, 28-150 Mo
Mas Range (X-RAY TUBE) 2-600, Mo tube. The mAs range is 2-752 with the Mo/W tube.
Kv range (X-RAY GENERATOR) 23 increments of 1 kV
Time range, sec (X-RAY TUBE) 0.007-7
Magnification Unit (X-RAY TUBE) 1.5x and 1.8x
Compression Method (X-RAY TUBE) Manual, motorizedby footswitch and OPCOMP; automatic or manual release
Force, newtons (X-RAY TUBE) 30-200, selectable
Power Needed 208 VAC, single phase
Dimensions (HXWXD) CM, (IN) (DISPLAY) 217 x 52 x 22.5 (85.4 x 20.5 x 9) stand, 196 x 70 x 34 (77 x 27.6 x 13.4) generator
Weight, kg (lb) (DISPLAY) 300 (661.5) stand, 140 (309) generator
RADIATION OUTPUT
Mr/sec @ 28 kvp (RADIATION OUTPUT) 1,800
Radiation Shield(X-RAY TUBE) Yes
L x w, cm (in) (CONTROL CONSOLE) 195 x 65 (76.8 x 25.6)
Thickness (DIMENSIONS, cm (in) 0.25 mm Pb equivalent
POSITIONING ASSEMBLY
CT Scanner

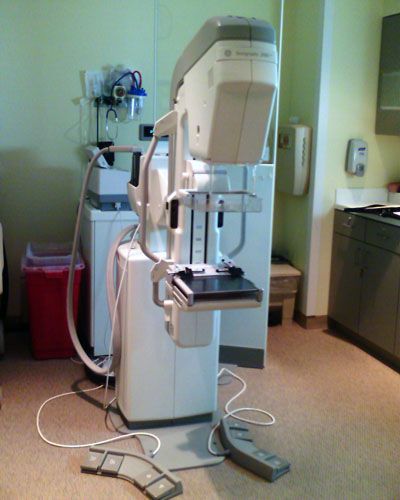

GE DMR PLUS MAMOGHRAPHY SYSTEM

Generator: High Frequency X-Ray Generator

Tube: Dual Track Molybdenum/Rhodium X-Ray.

Focal Sport: .01mm and .3mm focal sport size.

Exposure Modes: Three Exposure Modes Automatic

Optimization of Parameters (AOP), Fully Automatic and

AEC Semi Automatic/Manual.

Magnification: 1.3 and 1.9 Magnification Factors single Platform.

Telescopic Motorized Colum: Command buttons Located on Each Side And top of the Column for easy Access.

Digital Display: Compression Pressure, Breast Thickness,

Size of X-Ray Field and Magnification Factor.

Foot Peddles: Motorized Compression Control by Tow

Compression/Decompression Pedals with Manual Fine Tuning.

Compression Paddles: Side Mount for Stability/Easy of Mounting.
